Parallelogram drawing machine Kuhlmann
No. 20881
B 1,50m x H 2,08m x T 72cm
sold out
Price on Request
Description

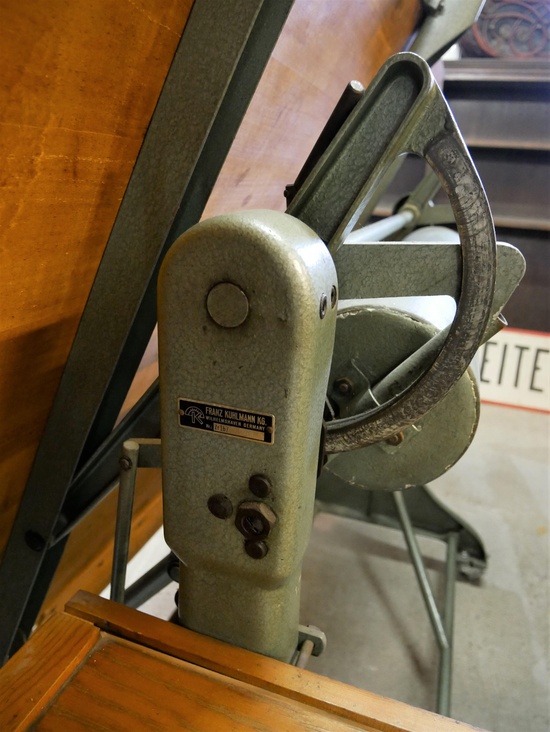

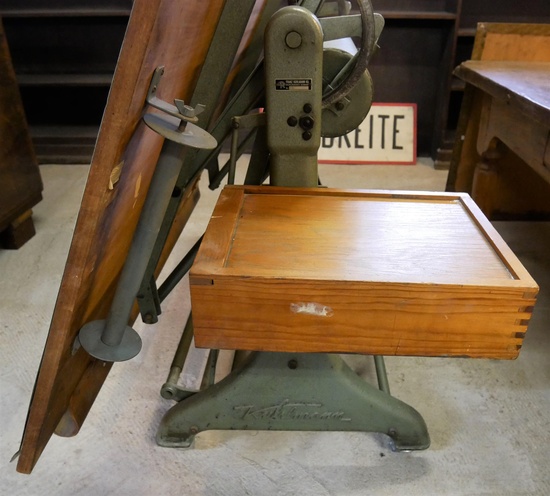

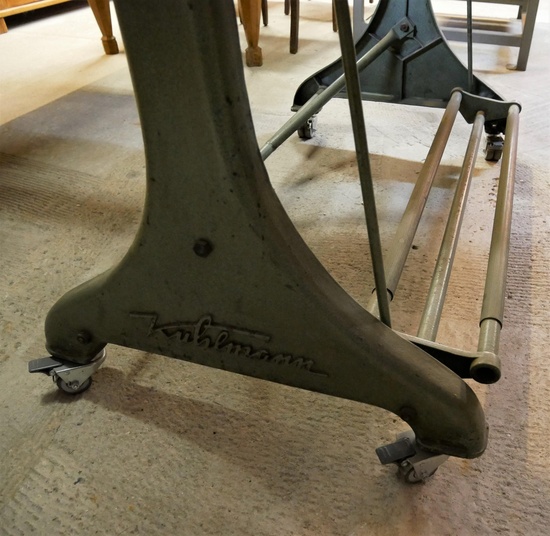

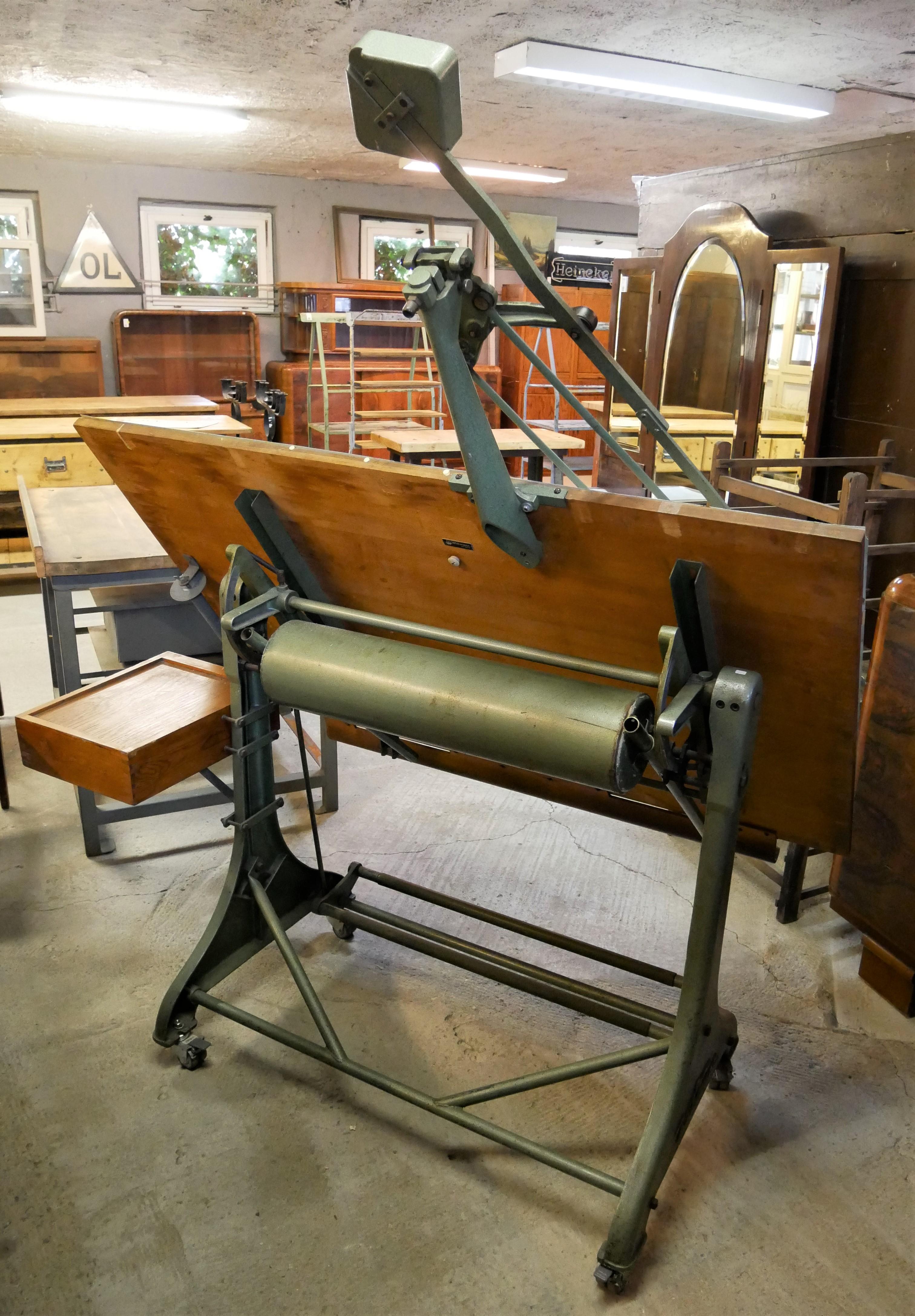

The Kuhlmann drawing machine is adjustable in height and inclination. The drawing table can be fixed with the foot-operated locking device. At the lower end of the drawing board (DIN A0) there is a wooden drain as a storage tray. In addition, a wooden utensil box was attached to the right of the frame, as well as rollers underneath the machine base.

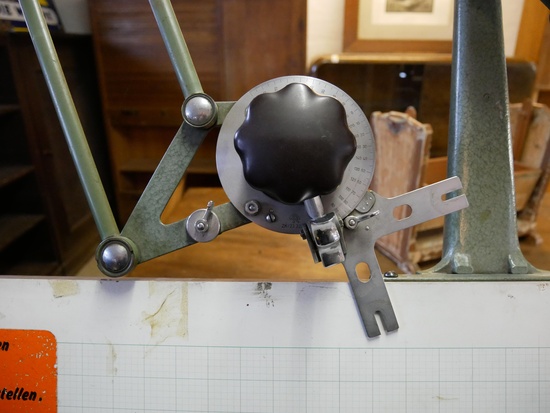

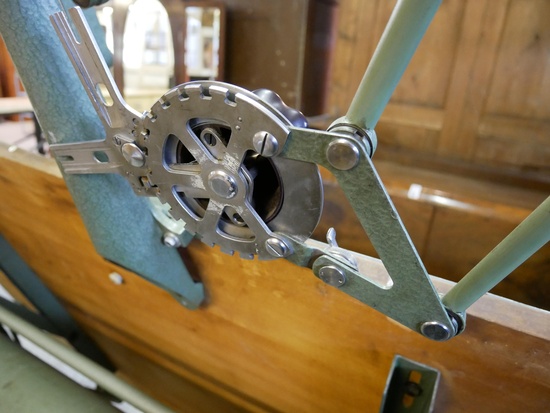

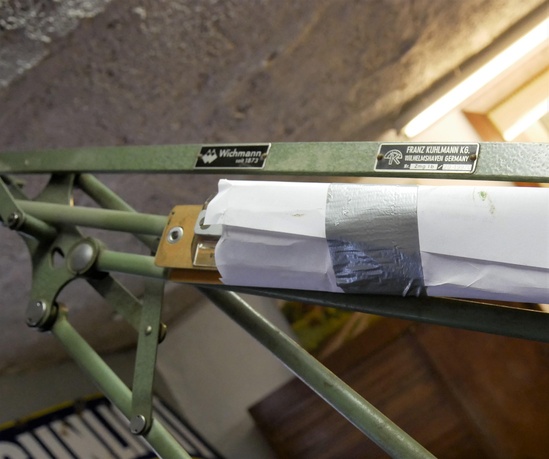

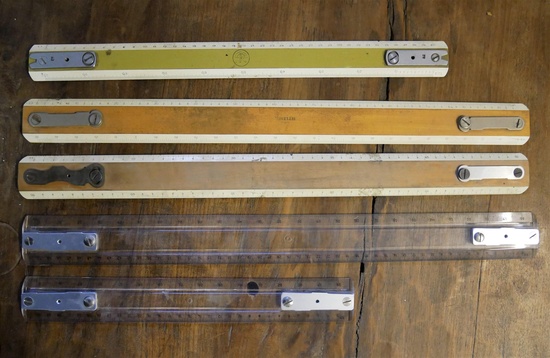

The drawing head, held by a weight, can be swivelled 180°. Various scale rulers, some original made of wood, some newer made of Plexiglas are still available.
Translated with www.DeepL.com/Translator
Measures and Weight
- Width: 1500 mm
- Stärke/Tiefe: 720 mm
- Höhe/Länge: 2080 mm
Material
- Wood
- Steel
Epoch
- 50s
